◆ 2” x 1” metal package
◆ 2” x 1” metal package
◆ Wide 2:1 input voltage range
9–18, 18–36, 36–75 VDC
◆ High efficiency up to 92%
◆ Adjustable output voltage
◆ No minimum load required
◆ Operating temperature range
–40°C to +85°C
◆ Input filter to meet EN55022, class A
◆ Remote On/Off
◆ Under voltage lockout
◆ Lead free design, RoHS compliant
◆ 3-year product warranty

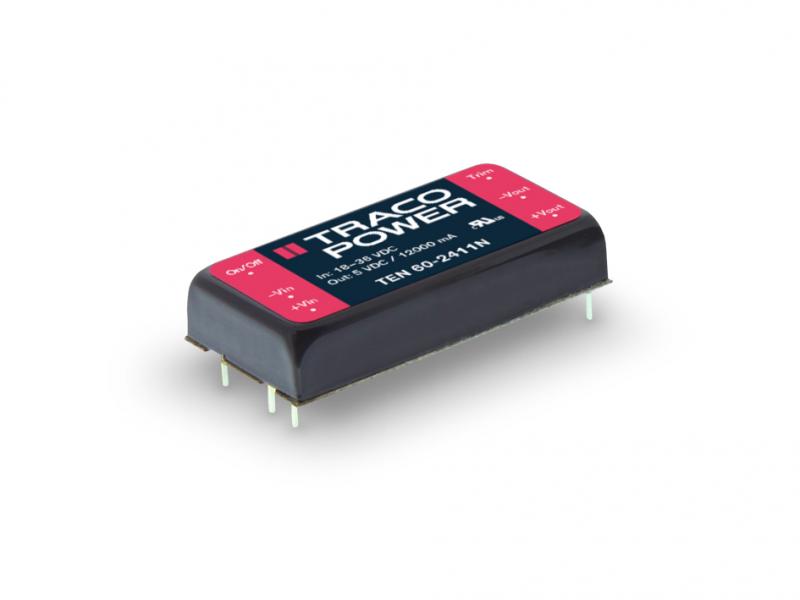

The TEN 60N series is a family of high performance 60 Watt dc/dc converter modules featuring wide 2:1 input voltage ranges in a six side shielded 2” x 1” metal package with industry standard footprint. Standard features include remote On/Off, over voltage protection, under voltage lockout and short circuit protection. High efficiency across load range and low input current characteristics at no load make these converters the ideal solution for battery-operated systems. Typical applications are in wireless networks, telecom/datacom, industry control systems and measurement equipment.
