产品名称:TRACO 宽电压高隔离铁路模块THN 10W DC/DC 3000 VDC I/O-isolation

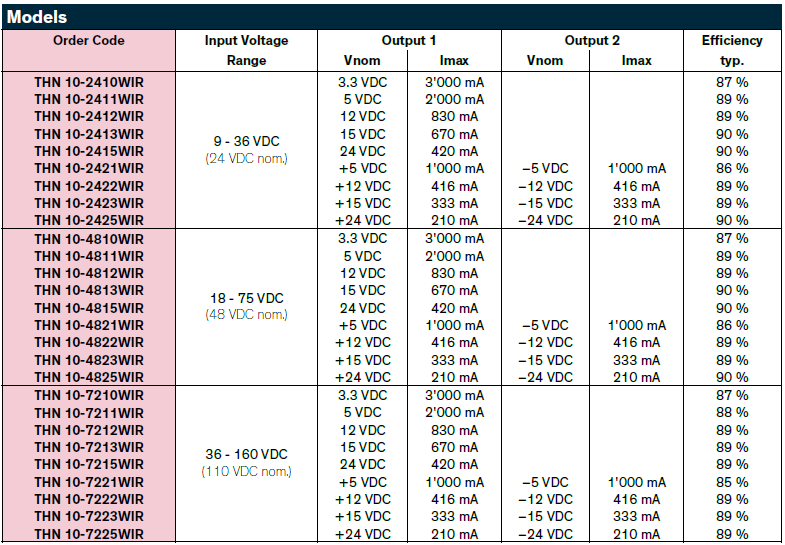

型号:THN 10WIR 系列
备注:railway applications
分享到:
• EN 50155 and EN 61373 approval for railway applications
• Qualification for fire behavior according to EN 45545-2
• Wide 4:1 input voltage: 9-36, 18-75, 36-160 VDC
• Operating temperature range -40 to +80 °C without derating
• High efficiency up to 90%
• 3000 VDC I/O-isolation
• Protection against overload, overvoltage and short circuit
• Remote On/Off and Trim function
• 3-year product warranty
The THN 10WIR series is a family of ruggedized 10 Watt DC/DC converters for
highest reliability in harsh environments. The converters have a wide 4:1 input
range and increased resistance against electromagnetic interference, shock/vibration
and thermal shock and come in a six-side shielded 1” x 1” metal package.
The innovative design provides high efficiencies up to 90% and thus enable
an operating temperature range from -40 to +80°C without derating. The
approvals according to standards EN 50155 and EN 61373 qualify them for
railway and transportation systems. Additional qualification for the fire behavior
of components according to EN 45545-2 and the safety approval according
IEC/EN 62368-1, UL62368-1 support a potential compliance test of the application.
Built-in features like an internal EN 55032 class A filter, input under-
voltage-lockout, short circuit protection, remote On/Off and output voltage
trim make this series suitable for almost any application demands and thus facilitate
the design-in process.
